323333_i7500-600-EU-BWS i7500 Industrial Label Printer 600dpi - EU + Brady Workstation Suite
Skip image gallery
Picture similar to product
€2,749.00
Content: 1
Available in 3 days, delivery time 2-5 days
Product number: i7500-600-EU-BWS
Manufacturer: Brady
EAN: 888434912744
Manufacturer product number: 323333
Weight: 25 kg
Min. order quantity: 1
Our benefits
- Free shipping above €500 excl. VAT within EU
- Knowledge and Advice
- If in stock, fast delivery
- Request a quote for large quantities from the shopping cart
- Specialist in Labeling
Product information "323333_i7500-600-EU-BWS i7500 Industrial Label Printer 600dpi - EU + Brady Workstation Suite"
Features
- No need to set print speed, heat, offsets, sensor mode or sensor location — i7500 does it automatically without wasteful trial-and-error print tests
- No need to calibrate wasted blank labels — i7500 detects the part size and spacing, and prints on the very first label
- i75-Series ribbons auto-center with the ink always facing the correct way; the i7500 will warn you if the ink type is a mismatch with the installed label material
- Over 4,000 stock i75-Series label parts and ribbons in 80+ materials operate in full smart-mode functionality
- Manual 76.2 core label rolls and 25.4 core ribbons will also function in full manual mode where the operator makes necessary adjustments for print settings, sensor adjustments, label calibration and correct ribbon pairing
- Brady WorkStation software Suite (included) auto-detects the installed part for driverless 1-click setup and label file creation; or use Win driver if using non-Brady software
- 600 dpi print resolution for high-precision printing of small fonts and barcodes, or user can quickly field-exchange with optional 300 dpi printhead with no calibration or firmware update required

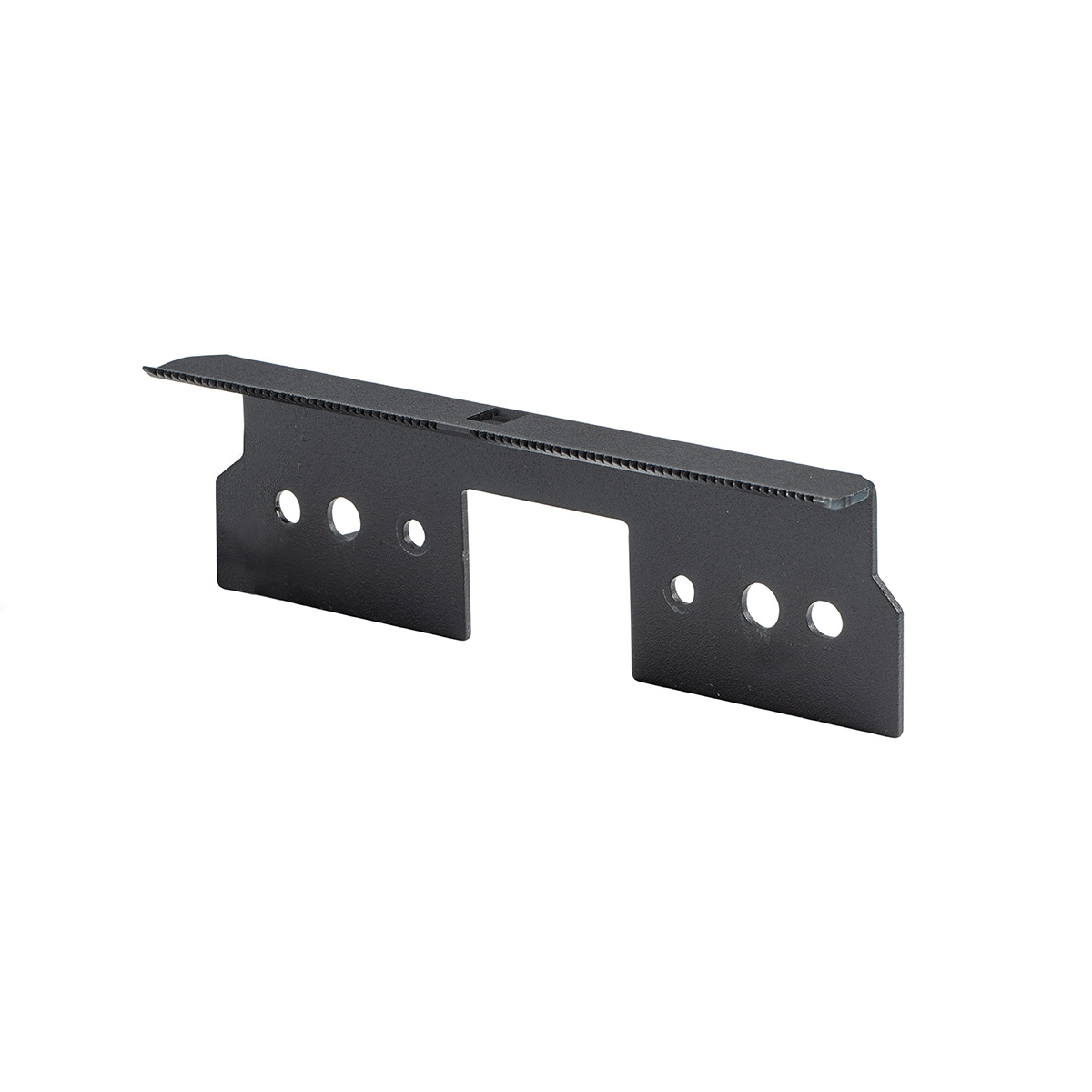

- Standard configuration ships with a Tear Bar; optional Auto Cutter accessories can be easily user-installed with four fastening screws
Contents of the box
| Product contents | This i7500 Printer 600dpi comes in a cardboard box. It ships with a Serrated tear bar (installed), a T-20 wrench, a Power cord (EU plug), a USB cable, a license for Brady Workstation Software Suites and a QuickStart Guide. |
|---|
Printer specifications
| Device Connectivity | Stand-alone & Peripheral;Mobile device connected |
|---|---|
| Display Resolution | 1024 x 600 pixels |
| Display Type | Colour LCD Touchscreen |
| Keyboard Type | None |
| Languages Available | Bahasa (Indonesian); Bahasa Malay; Bulgarian; Chinese (Traditional & Simplified); Croatian; Czech; Danish; Dutch; English (US); Estonian; Finnish; French (Canada); German; Hungarian; Japanese; Korean; Norwegian (Bokmål); Polish; Portuguese; Romanian; Russian; Slovak; Spanish (Universal); Thai; Turkish; Vietnamese |
| Max. Lines of Text | 0 |
| Maximum Characters per Line | 0 |
| Memory | 512 MB RAM, 195 MB IFFS Flash |
| Core Diameter (metric) | 76.20 mm |
| Depth (metric) | 530.86 mm |
| Dimensions (metric) | 292,10 mm (W) x 370,84 mm (H) x 530,86 mm (D) |
| Height (metric) | 370.84 mm |
| Minimum Liner Width (metric) | 9.09 mm |
| Minimum Label Length (metric) | 3.18 mm |
| Maximum Label/Tape Width (metric) | 108.97 mm |
| Maximum Labels per Day | 7000 |
| Maximum Print Speed (metric) | 152.40 mm/s |
| Display Size | 177.80 mm |
| Maximum Label/Tape Width (metric) | 108.97 mm |
| Maximum Liner Width (metric) | 114.05 mm |
| Maximum Print Width (metric) | 105.66 mm |
| Maximum Printed Label Length (metric) | 1.524 m |
| Operating Humidity Range | 10%-85% (RH non-condensing) |
| Operating Temperature Range (°C) | 10°C - 40°C |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Plug Type | EU |
| User Interface Type | Touchscreen & PC |
| Maximum Ribbon Length (metric) | 457.20 m |
Compatibility
| Compatible Media | i75-; 2FR-; 2HT-; 2HX-; 2LSZH-; 3FR-; 3HT-; 3PS-; APL-; DR-; DT-; FR-; HCM-; HSNX-; HT-; HX-; i75-; LSZH-; PS-; THT-; THTC-; THTCLP-; THTCLT; THTEL-; THTEP-; THTFP-; THTFT-; THTHD-; THTPNP-; THTRDS-; THTRO-; THTTL-; XTHT- |
|---|
Other specifications
| Application | Barcode labelling; Wire and cable labelling; Electrical labelling; Data and telecommunications labelling; Circuit board labelling; Asset tracking; General identification; Laboratory labelling; Solar Panel labelling; Tamper Indicating Labels; Warehouse marking; Inventory and inspection labelling |
|---|---|
| Industry | Electrical; Voice & data communication; Electronics; Aerospace; Construction; Laboratory; Mass transit; Warehouse & logistics; Defence; Automotive |
