174410_BM-1000-175-342 PermaSleeve® Heat-Shrink Labels for M610, M611, BMP61, M710 and BMP71, 44,45 mm (W) x 42,16 mm (H), White
Skip image gallery
Picture similar to product
Regular price:
€710.58
Content: 1 roll
Available in 1 day, delivery time 2-5 days
Product number: BM-1000-175-342
Manufacturer: Brady
EAN: 0888434602614
Manufacturer number: 174410
Also known as: BM71-1000-175-342 / 115007
Weight: 1.315 kg
Min. order qty: 1
Product information "174410_BM-1000-175-342 PermaSleeve® Heat-Shrink Labels for M610, M611, BMP61, M710 and BMP71, 44,45 mm (W) x 42,16 mm (H), White"
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Highlights
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
- Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
- A ribbon is required to print this material. Use Part Number M61-R4310for the M610 / BMP61 / BradyPrinter M611 / M611 Label Printers or M7-R4300 for the M710 / BMP71 Label Printers
Main Characteristics
| Quantity per pack | 500 Stuk(s) |
|---|---|
| Country of Origin | US |
Box contents
Dimensions

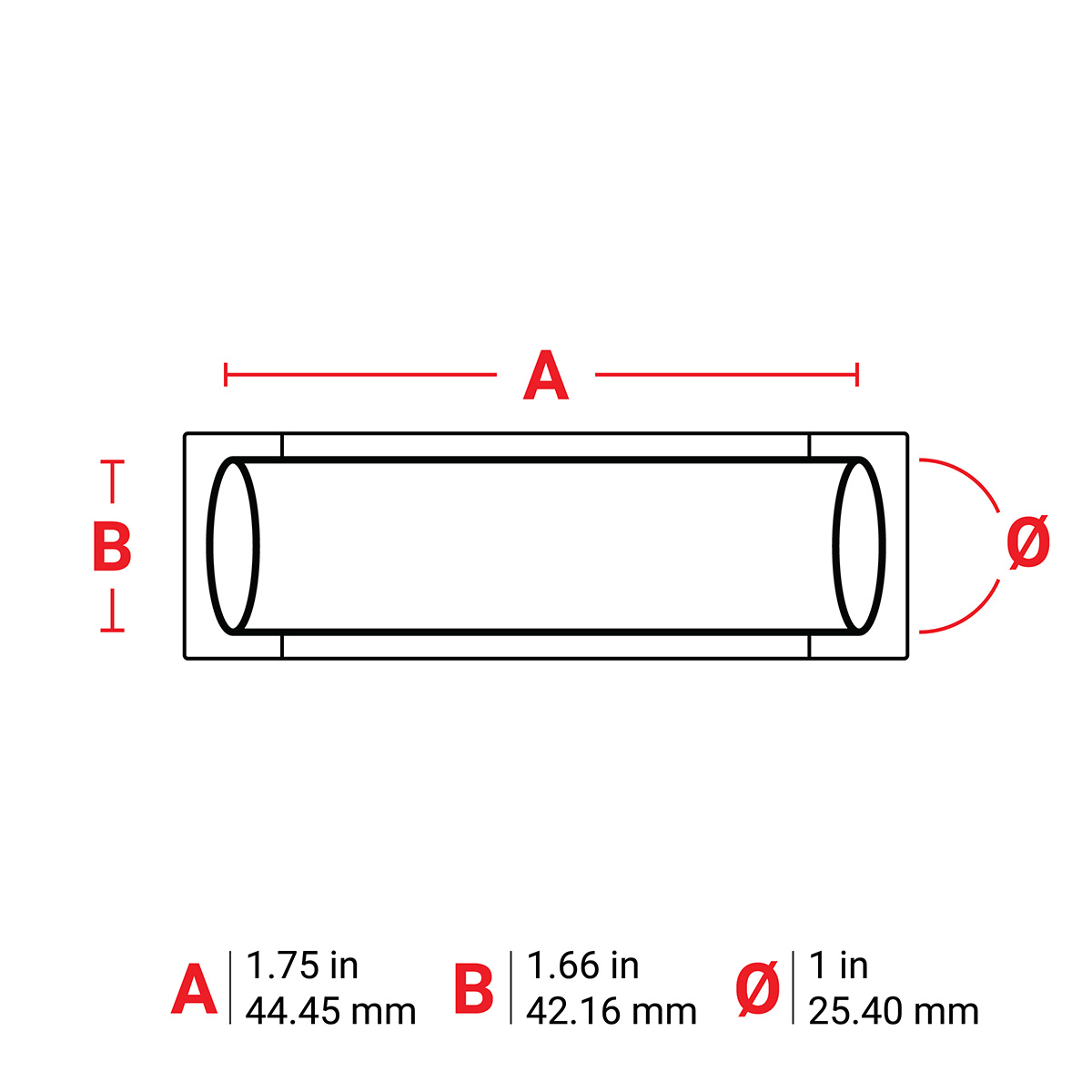

| Dimensions (metric) | 44,45 mm (W) x 42,16 mm (H) |
|---|---|
| Height (metric) | 42.16 mm |
| Diameter as Supplied (metric) | 25.40 mm |
| Roll Width (metric) | 44.45 mm |
| Web Width (metric) | 57.15 mm |
| Wire Diameter Range (metric) | 8,46 mm - 24,13 mm |
Material
| Brady Material Number | B-342 |
|---|---|
| Maximum Service Temperature (°C) | 135 °C |
| Minimum Service Temperature (°C) | -55 °C |
| Finish | Matt |
| Shrink Ratio | 3:1 |
Print Specifications
| Smart Cell | Yes |
|---|---|
| Print Technology | Thermal Transfer |
Heat Shrink Specifications
| Vertical Repeat (metric) | 50.80 mm |
|---|---|
| Recovered Diameter (metric) | 9.53 mm |
| Colour | White |
| Continuous or Die-cut | Die-cut |
| Max. Lines of Text | 16 |
| Service Temperature Range (°C) | -55 °C - 135 °C |
| Printer and Label Applications | Wire & Cable |
| Recommended Ribbon | M61-R4310;M71-R4300 |
| Recommended Ribbon Series | R4300 |
| Brady Material Number | B-342 |
| Finish | Matt |
| Material | Heat-shrink Polyolefin |
| Material Properties | Flame-retardant,Heat-shrinkable |
| Material Type | Polyolefin |
| Shrink Ratio | 3:1 |
| Printable Sides | Single-sided Printable |
| Sleeve Width (metric) | 44.45 mm |
| Maximum Wire Diameter (metric) | 24.13 mm |
| Sleeve Size (metric) | 25.40 mm Dia x 44.45 mm W |
| Quantity per Roll | 500 |
| Printer Compatibility | BMP61,BMP71,M610,M611,M710 |
| Quantity per Row | 1 |
Other Specifications
| Application | Electrical labelling,Wire and cable labelling |
|---|---|
| Approval/Compliance (EMEA) | SAE AS-81531,SAE-AMS-DTL-23053/5 C (Class 1),UL Recognised to UL224 |
| Industry | Aerospace,Electrical |
Properties "174410_BM-1000-175-342 PermaSleeve® Heat-Shrink Labels for M610, M611, BMP61, M710 and BMP71, 44,45 mm (W) x 42,16 mm (H), White"
| Adhesive: | No adhesive |
|---|---|
| Label color: | White |
| Label formaat: | Rol |
| Label material: | B-342 Heat Shrink retractable |
| Tape color: | White |
| Width: | 44.45 mm |
Datasheets
